Microgrid Resilience: How Microgrids Keep Critical Loads Powered During Grid Outages

Microgrid resilience is about keeping the electrical services that matter most operating when the wider power grid cannot. A resilient microgrid does this by coordinating local generation, battery storage, controls and carefully prioritized loads, then separating from the utility system when necessary so electricity can continue flowing inside the microgrid.

That capability is increasingly important for hospitals, military facilities, communities, industrial operations, campuses and data centers where extended power interruptions can create consequences far beyond temporary inconvenience.

The U.S. Department of Energy describes a microgrid as a network of connected electrical devices that can be controlled while either connected to or disconnected from the larger electric grid. That ability to control resources locally and potentially operate independently is the foundation of microgrid resilience.

What is microgrid resilience?

Microgrid resilience is the ability of a local energy system to prepare for, withstand, respond to and recover from disruptions while continuing to supply priority electrical loads.

The disruption could result from severe weather, wildfire, equipment failure, transmission problems or another event affecting conventional utility service.

A microgrid does not necessarily attempt to operate every light, appliance and piece of equipment during a prolonged outage.

Instead, system designers identify the loads that must continue operating and build an energy strategy around supporting them.

Those loads are generally known as critical loads.

What happens when the utility grid goes down?

During normal conditions, a grid-connected microgrid can operate alongside the utility system.

It may import electricity, operate batteries, use on-site solar or generation and optimize power according to cost, reliability or other objectives.

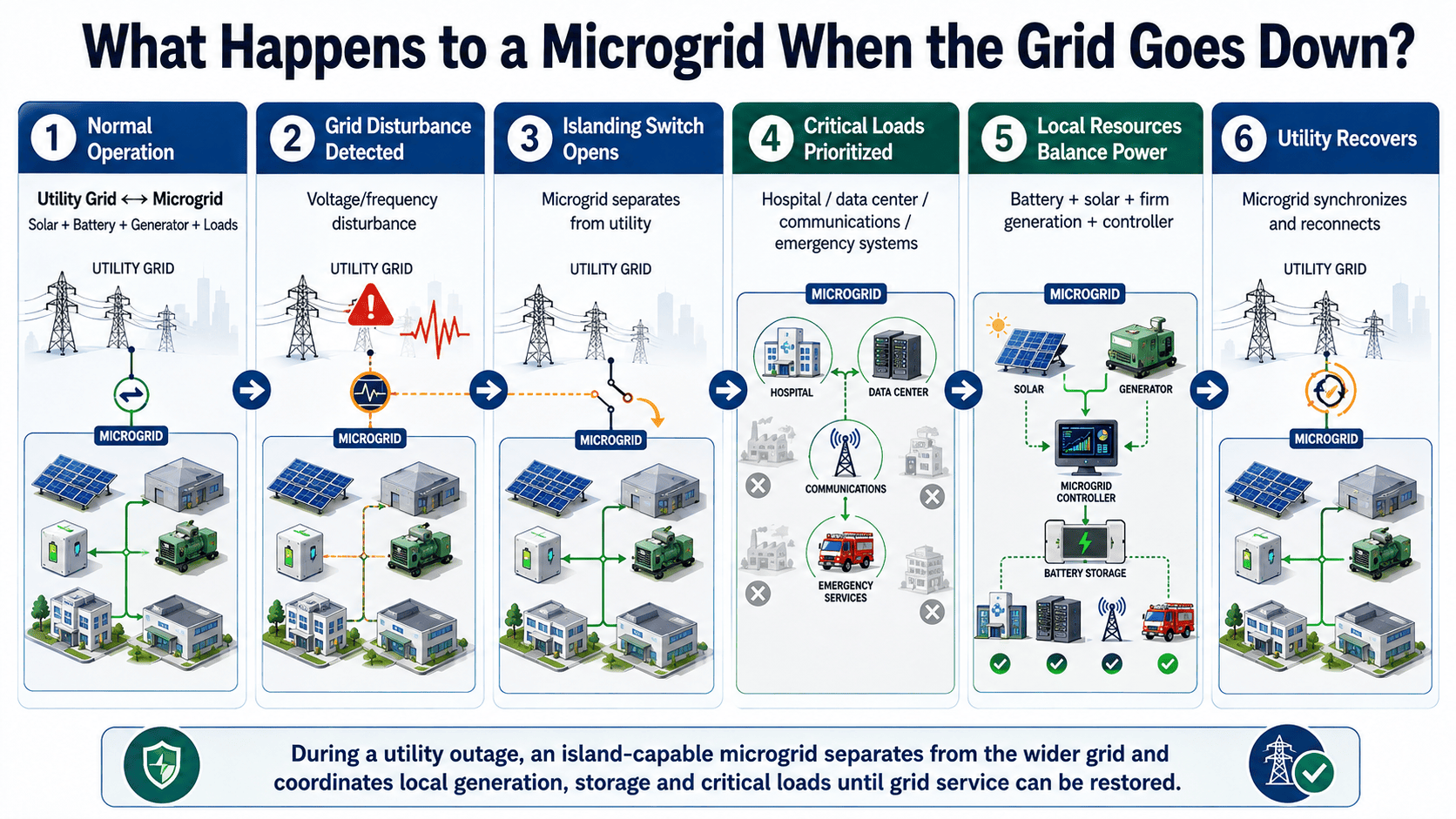

When the utility grid experiences a disturbance, the operating sequence changes.

1. The microgrid detects the disturbance

Protection systems and controls monitor voltage, frequency and other electrical conditions at the point where the microgrid connects with the utility.

If utility conditions move outside acceptable limits, the system can determine that continued grid-connected operation is no longer appropriate.

2. The microgrid separates from the utility

The microgrid opens its connection with the surrounding system through a process known as islanding.

The DOE’s microgrid islanding demonstration shows how distributed energy resources within a campus can continue supplying buildings after the serving utility grid becomes unavailable.

Electrical separation is essential both for operating the local system independently and for preventing an islanded microgrid from unintentionally energizing utility infrastructure where crews may be responding to an outage.

3. Local resources take responsibility for the load

Once separated, the microgrid can no longer depend on the wider system to supply missing electricity or absorb excess generation.

Its local resources must continuously balance supply and demand.

Those resources might include:

• Battery energy storage systems
• Solar photovoltaic generation
• Natural-gas generators
• Combined heat and power systems
• Fuel cells
• Wind generation
• Other distributed energy resources

4. Critical loads receive priority

If available generation is not sufficient to operate every electrical load, the microgrid controller can shed lower-priority consumption.

A hospital might prioritize emergency medical equipment and critical environmental systems. A military installation might protect communications and mission systems. A data center would prioritize servers, networking infrastructure and cooling.

This ability to make deliberate decisions about what remains powered is one of the main advantages of designing resilience around a microgrid rather than simply adding disconnected backup equipment.

5. The system stabilizes islanded operation

Frequency and voltage still need to remain within acceptable ranges after the microgrid separates from the utility.

Batteries, generators, advanced inverters and the microgrid controller can all contribute to maintaining stable operation.

6. The microgrid eventually reconnects

After utility service is restored and conditions are stable, the microgrid can synchronize with the external system and transition back to normal grid-connected operation.

Why critical loads determine microgrid resilience

A resilience project should generally begin with loads rather than technologies.

Before deciding how many batteries or generators to install, system planners need to know what must remain operating and for how long.

Critical loads vary significantly by site.

Healthcare facilities

Hospitals and healthcare facilities may need continuous power for life-safety systems, medical equipment, communications, refrigeration and essential heating or cooling.

Military and government facilities

Mission-essential systems may include communications, computing, security, intelligence infrastructure and facility controls.

Microgrid Media recently covered an Ohio Air National Guard base-wide microgrid built around energy resilience for critical operations. The project illustrates why military sites have become an important microgrid use case.

Community resilience facilities

Community microgrids can prioritize shelters, emergency communications, refrigeration, charging, heating, cooling and other services needed during extended emergencies.

Commercial and industrial facilities

Critical loads may include manufacturing equipment, refrigeration, safety systems, servers or processes where an abrupt loss of electricity creates substantial economic damage.

Data centers

Computing equipment requires a particularly high level of power continuity.

Microgrid Media’s cornerstone guide to data center microgrids and battery storage explains why AI facilities are increasingly evaluating batteries, on-site generation and advanced controls alongside traditional utility infrastructure.

Battery storage plays a central role in resilient microgrids

Battery energy storage can respond much faster than many conventional generators.

That makes batteries valuable during the seconds and minutes surrounding a grid disturbance.

A battery can:

• Respond rapidly when utility power disappears
• Support the transition into island mode
• Balance rapid changes in load
• Store excess solar generation
• Reduce generator cycling
• Support power quality
• Provide electricity while other resources start

But batteries have an important limitation: stored energy is finite.

A 20 MW battery does not tell an operator how long that resource can support a 20 MW load. Energy capacity, normally expressed in megawatt-hours, determines duration.

A battery rated at 20 MW/40 MWh has a fundamentally different resilience profile from one rated at 20 MW/160 MWh.

For this reason, resilient microgrid design needs to consider both power and energy duration.

Solar alone does not automatically provide outage resilience

Installing rooftop or ground-mounted solar does not necessarily mean a building will have electricity during a utility outage.

Conventional grid-connected solar systems are designed with protection functions that prevent them from continuing to energize an unsafe or failed utility circuit.

To provide power during an outage, solar must be integrated into an appropriately designed island-capable system with the controls and electrical architecture necessary for independent operation.

This is one reason battery storage and microgrid controls often appear alongside solar in resilience projects.

Solar can provide valuable energy while sunlight is available. Batteries can absorb excess solar production and release it later. Firm generation can provide another layer when renewable output is insufficient.

Firm generation matters during long outages

Battery storage is powerful, but long-duration resilience frequently requires an energy source that can continue producing electricity as long as fuel or another primary energy supply remains available.

That role can be filled by different technologies depending on the project.

Natural-gas or other engine generation

Dispatchable generators can provide substantial on-site capacity and operate for long periods when fuel remains available.

Combined heat and power

Facilities with substantial thermal demand can consider CHP systems that produce both electricity and useful heat.

Microgrid Media’s guide to combined heat and power for microgrid developers explains where CHP can provide firm capacity, resilience and thermal co-optimization inside a microgrid.

Fuel cells

Fuel cells can provide continuous distributed generation and may fit sites where low local emissions, noise or long-duration operation are important considerations.

Our analysis of hydrogen fuel cells for microgrid resilience examines the technology’s potential role between short-duration batteries and longer-duration energy needs.

No single generation technology is automatically the correct choice. Fuel availability, emissions, operating cost, permitting, reliability requirements and outage duration all affect the design.

The microgrid controller is the system’s coordinator

A resilient microgrid is not simply a collection of generators and batteries wired to the same property.

Those resources need to operate as a coordinated electrical system.

The microgrid controller can determine:

• When batteries should charge or discharge
• When generators should start
• Which loads should be shed
• How renewable generation should be managed
• When the system should disconnect from the grid
• How islanded power balance should be maintained
• When the microgrid can safely reconnect

The DOE’s microgrid research strategy emphasizes controls, automation and protection as key elements for maintaining local reliability and resilience under changing grid conditions.

Grid-forming inverters can become important during islanded operation

As more microgrids rely on battery storage and renewable energy, inverter behavior becomes increasingly important.

Many conventional renewable-energy inverters are grid-following. They rely on an existing electrical waveform and synchronize their output with it.

Advanced grid-forming inverters can instead establish voltage and frequency references for an electrical system.

The DOE’s explanation of inverter grid services notes that grid-forming inverters can support black-start capability, while conventional grid-following devices generally require an outside grid signal.

This distinction becomes particularly relevant when a highly renewable or battery-heavy microgrid must operate independently after the larger grid goes dark.

What is black start?

Black start is the ability to restart an electrical system without relying on external grid power.

Imagine a major disturbance causes both the utility system and the microgrid to shut down.

Restarting the microgrid may require one resource capable of establishing an electrical reference so other generation and loads can return in a controlled sequence.

Not every battery, inverter or generator automatically has this capability. Black-start requirements therefore need to be considered during design rather than assumed after equipment has been installed.

How long can a microgrid operate during an outage?

There is no universal microgrid outage duration.

A microgrid can potentially operate for minutes, hours, days or substantially longer depending on its design.

The main factors include:

• Size of the critical load
• Battery energy capacity
• Battery state of charge when the outage begins
• Solar or wind production
• Available generator capacity
• Fuel inventory and fuel-delivery reliability
• Weather conditions
• Ability to shed noncritical loads
• Facility energy efficiency
• Duration of the outage

This is why resilience should be evaluated in terms of survivability rather than simply installed megawatts.

A large microgrid serving every load at full demand can potentially exhaust its energy resources more quickly than a smaller system designed around carefully prioritized critical services.

Microgrids can create value even when there is no outage

One of the most important developments in microgrid economics is the recognition that resilience infrastructure does not necessarily need to sit idle waiting for an emergency.

DOE’s 2026 analysis of the value of microgrids for resilience distinguishes between emergency or “black sky” benefits and the services microgrids can provide during normal operating conditions.

A grid-connected microgrid may also:

• Reduce peak electricity demand
• Optimize battery charging
• Increase use of on-site generation
• Participate in demand-response programs
• Manage electricity costs
• Provide certain grid services
• Coordinate EV charging

The stronger economic model is therefore often not “buy equipment that only operates during outages.”

It is “build an energy system that creates value every day and retains the ability to protect critical loads when the grid fails.”

Real projects show different approaches to resilience

There is no single standard microgrid architecture.

Recent Microgrid Media coverage illustrates the variety.

CPS Energy sought battery storage and a microgrid capable of operating either connected to its system or in island mode. The San Antonio battery storage and microgrid procurement shows how utilities can combine distribution-scale storage with outage resilience.

The Ohio Air National Guard project takes a different approach, combining microgrid controls with dispatchable generation and potential solar and battery options to protect mission-critical operations.

Data center projects can represent another model entirely, with enormous computing loads driving combinations of batteries, on-site generation and utility service.

The common principle is not the equipment list. It is coordinated operation around a clearly defined resilience objective.

Microgrid resilience vs backup generators

A backup generator and a microgrid should not be treated as interchangeable terms.

A conventional standby generator usually activates after utility electricity disappears and supplies predetermined emergency circuits.

A microgrid can coordinate several technologies and loads before, during and after an outage.

How should organizations plan a resilient microgrid?

A useful resilience assessment starts with operating requirements rather than technology preferences.

1. Identify the threats

What kinds of disturbances must the facility withstand? Short grid interruptions, wildfire shutoffs, hurricanes and multi-day regional outages create different design requirements.

2. Define critical loads

Determine which systems truly need continuous electricity.

3. Establish the required duration

Does the organization need four hours of independent operation, 24 hours, three days or longer?

4. Evaluate available energy resources

Consider solar conditions, natural-gas infrastructure, fuel storage, batteries, thermal demand and other site-specific resources.

5. Design the islanding strategy

Protection, controls and switching equipment need to support safe separation from the utility system.

6. Plan for degraded conditions

Resilience planning should consider what happens when one resource is unavailable, fuel delivery is interrupted or renewable production is below expectations.

7. Evaluate everyday value

Determine whether batteries, generation and controls can reduce costs or provide grid services when no emergency exists.

Frequently Asked Questions

Can a microgrid keep the power on during a blackout?

Yes, when it is designed for island operation and has sufficient local energy resources to support its prioritized loads.

What is microgrid islanding?

Microgrid islanding is the process of electrically disconnecting the microgrid from the wider utility system so it can operate independently using local generation and storage.

Does every microgrid have batteries?

No. Microgrids can use many combinations of distributed energy resources. Battery storage is increasingly common because of its rapid response and ability to coordinate effectively with renewable generation.

Can solar panels keep a building powered when the grid fails?

Only if the solar installation is part of an appropriately designed island-capable system. Ordinary grid-connected solar should not automatically be assumed to provide backup electricity during a utility outage.

What are critical loads in a microgrid?

Critical loads are electrical services that have been prioritized to remain available during a disruption. They vary by facility and may include medical equipment, communications, computing, refrigeration, security or essential heating and cooling.

How long can a battery microgrid run?

Duration depends on battery energy capacity, the size of the electrical load, available renewable generation and whether other generation resources are present. Battery power ratings alone do not determine outage endurance.

What is the difference between microgrid reliability and resilience?

Reliability generally concerns consistent electricity service under expected operating conditions. Resilience places greater emphasis on preparing for, withstanding and recovering from significant disruptions.

Can a microgrid operate when the wider grid is healthy?

Yes. Grid-connected microgrids can operate continuously and may manage electricity costs, batteries, renewable generation, demand response and other grid services during normal conditions.

The bottom line

Microgrid resilience is not created by installing one battery, one generator or one solar array.

It comes from designing an electrical system in which generation, storage, controls, protection equipment and loads continue working together when normal grid conditions disappear.

The most important question is therefore not simply how much power a microgrid can produce.

It is which services must survive, how long they must survive and how the system will maintain them under real outage conditions.

Once those requirements are clear, batteries, renewable generation, firm power, microgrid controls and load management can be designed around a measurable resilience objective.
